Set Static IP in client

2019/03/04 23:31

Notice: This wiki is for the old version CCBoot. Please click HERE to access the new version wiki

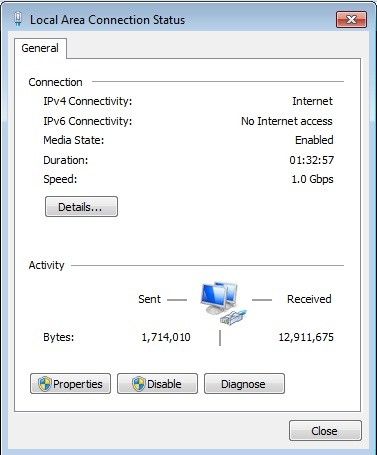

1)    Open the local area connection network properties (Figure 1).

Create Boot Image

Figure 1

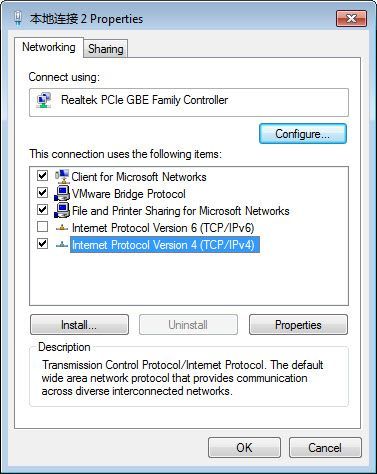

2) Click "Properties". Please uninstall all items and make it look like (Figure 2).

Create Boot Image

Figure 1-2

8) Select "Internet Protocol Version 4 (TCP/IPv4)" and click "Properties".

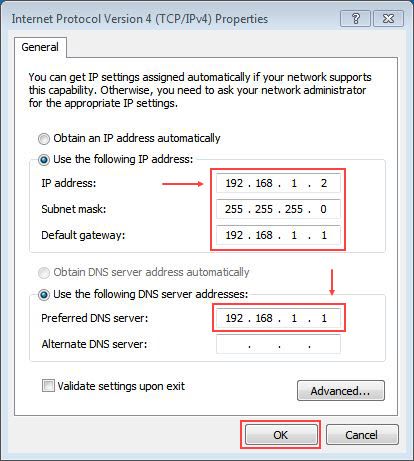

9) Select "Use the following IP address" and "Use the following DNS server addresses", then set the IP address, gateway address and the DNS address for the client. After that, click "OK" to save (Figure 1-3).


Figure 1-3
