Check server network usage
2024-03-31
server, network, usage
To check your server's network performance, open Task Manager on the server there you can monitor the network speed and overall network activity in real-time.
- Open Task Manager.
- Go to the "Performance" tab.
- Click on "Network" to view the data for "Send" and "Received" traffic. (Figure 1)

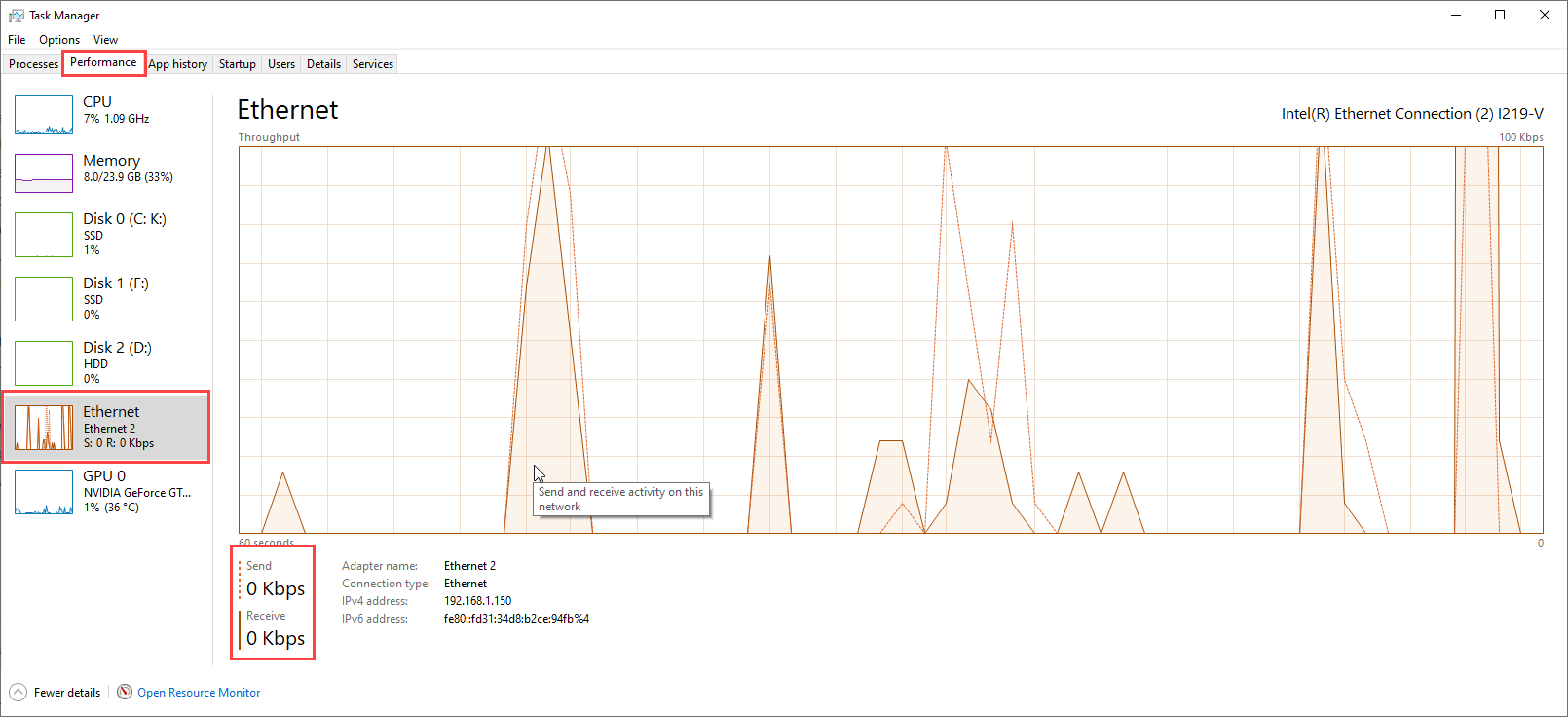

Figure 1
- Send - The rate at which data is being sent through the network adaptor measured in kilo, mega or giga bits per second (Kbps, Mbps, Gbps)
- Receive - The rate at which data is being received through the network adapter measured in kilo, mega or giga bits per second (Kbps, Mbps, Gbps)
- If your server’s network card is rated at 1 Gbps, the maximum achievable data transfer rate typically ranges between 900 Mbps and 1 Gbps. Network overhead and various factors, such as cabling, switch performance, and other network configurations, may cause slight variations within this range.
