Third party DHCP

2024-01-20
enable, dhcp, 3rd, party

The following provides instructions on configuring third-party DHCP settings for CCBootCloud

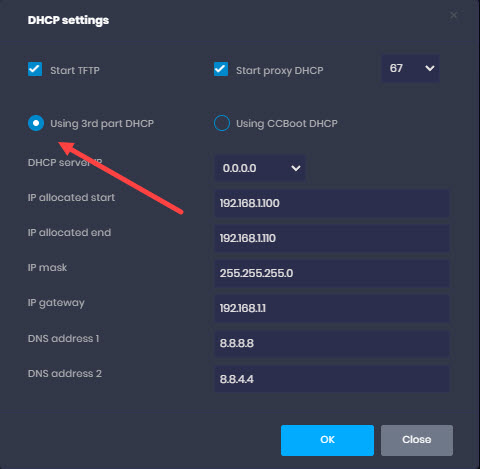

  1. Navigate to "Boot," then select "DHCP." Click on "Edit" and choose the "3rd party DHCP" option. You will observe that the port will change to 67(Figure 1)

Figure 1

  1. You need to make sure that you local DHCP in enabled.
  2. Log in to your router's IP address, typically something like 192.168.0.1.

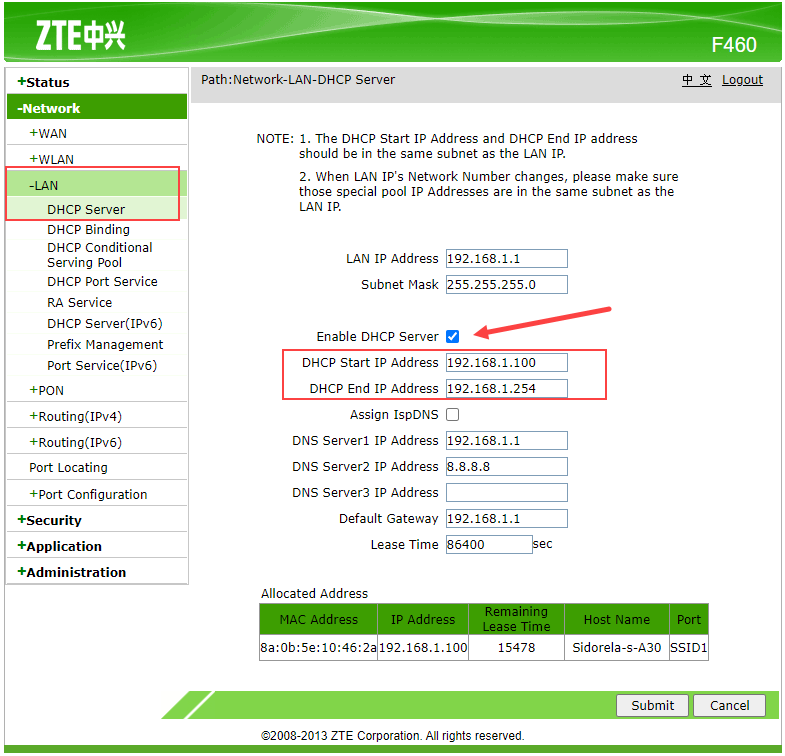

  3. Navigate to the LAN settings and then access the DHCP Server (Figure 2).

Figure 2

  1. Click to enable the DHCP server if it is not already enabled, and configure the DHCP start IP address and DHCP end IP address.
  2. PCs will automatically connect to DHCP and appear in the allocated addresses list.
  3. You can find more alternative methods, such as utilizing a router or MikroTik device.
