6.5 DHCP Settings

　　Demo Environment

　　Server IP: 192.168.1.220

　　Gateway: 192.168.1.1

　　DNS Address: 192.168.1.1

　　IP Mask: 255.255.255.0

　　DHCP Range: 192.168.1.101-192.168.1.254

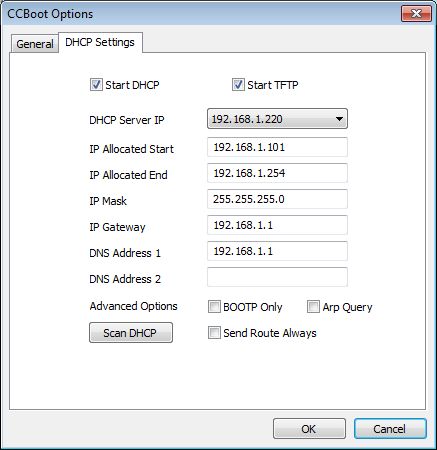

　　Figure 1

　　You need to select the correct local IP address as "DHCP Server IP". Press "Scan DHCP" to check if there are other DHCP services on the LAN. If yes, shut them down so that client PC can get IP address from CCBoot DHCP and then diskless boot Windows XP.
