25.4 Server Hard Disk Allocation

  One SATA HDD use for Server OS (C:\) and Image +CCboot Disk (D:\)

  Two SATA HDD setup on Raid0 use for Game Disk (We recommend to use Win2008 disk manager to setup RAID instead of hardware RAID)

  One SSD for SSD Cache (We recommend open AHCI mode of SATA in BIOS)

  Two SATA/SAS/SSD HDD use for Client Write-back Disk (We DONOT recommend use RAID for Write-back Disk)

  25 – 30 client pc – 8G DDR3

  30 – 70 client pc – 16G DDR3

  70 – 100 client pc – 32G DDR3

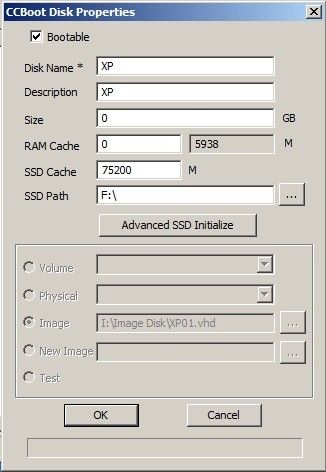

  SSD cache

ccboot-disk-properties

  Write-back disk with two SSD drives, we do not recommend using any array pattern.

  Note: If you want to use SSD for write-back disk in 40 – 70 clients PC 60GB one (1) SSD is not enough. It is recommended to use at least two (2) SSD 60gb or more for write-back disk.

  Please format also all HDD use for CCBoot Server except SSD drive in 32k cluster size.
